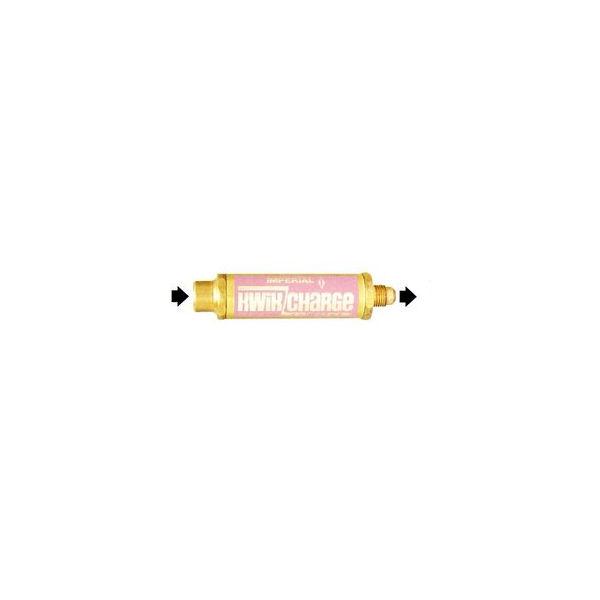

545-C Kwik Charge®

Liquid Low Side Charger, 5/16" Female SAE flare Inlet to 5/16" flare male Outlet

The Kwik-Charge accepts liquid refrigerant from the cylinder and discharges it into the low side of the system. This results in charging rates which are up to eight times faster than vapor charging.

In addition, liquid charging is required when using R-410A and other blended refrigerants.

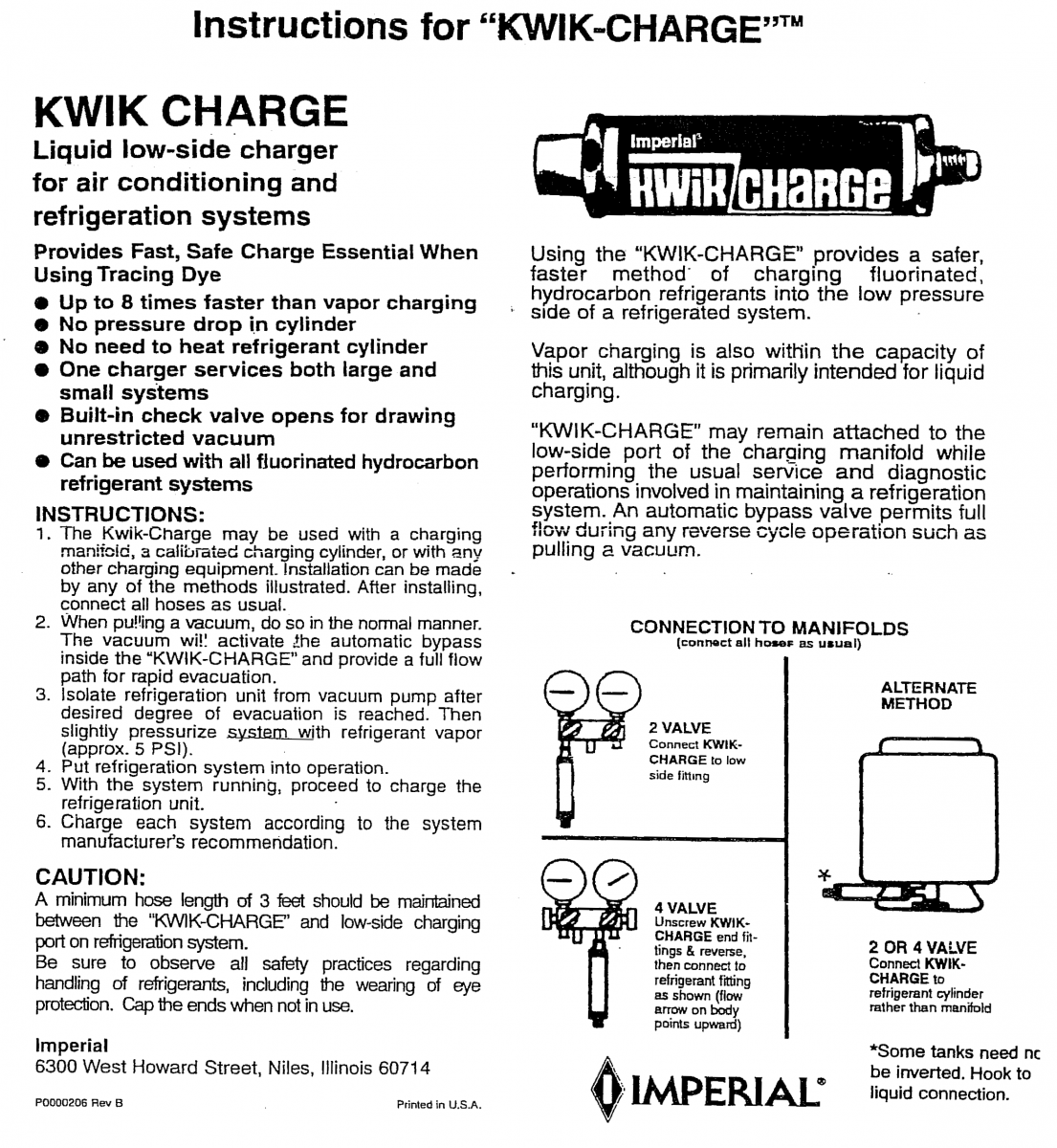

The Kwik-Charge is simply attached to the low side of the charging manifold. The charging hose is connected from the Kwik-Charge outlet to the low side of refrigeration system.
An internal metering element within the Kwik-Charge reduces the liquid flow to a level below the capacity of the compressor, assuring a safe, fast charge without damaging the compressor.
A built-in ball check valve automatically opens when drawing a vacuum to assure rapid, unrestricted evacuation. The Kwik-Charge can be used with all fluorinated hydrocarbon refrigerant systems.

  • Up to 8 times faster than vapor charging.
  • No need to heat the refrigerant cylinder.
  • Built-in check valve opens for drawing an unrestricted vacuum.
  • No pressure drop in the cylinder.



(545-C)


SKU 545-C
Brand Imperial
Shipping Weight 0.3500kg
Shipping Width 0.140m
Shipping Height 0.050m
Shipping Length 0.170m
Shipping Cubic 0.001190000m3
Unit Of Measure ea
Assembled Length 0.100m
Assembled Height 0.050m
Assembled Width 0.100m
