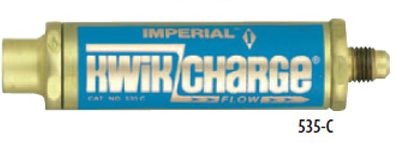

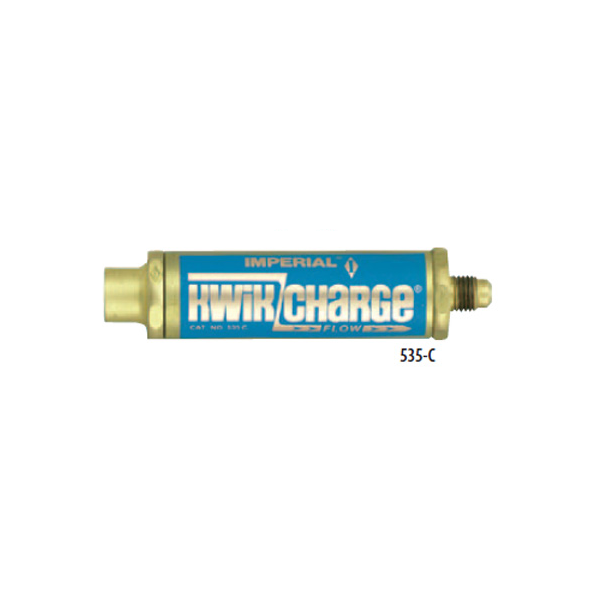

535-C Kwik Charger®

Liquid Low Side Charger, 1/4" Female SAE flare Inlet to 1/4" flare male Outlet

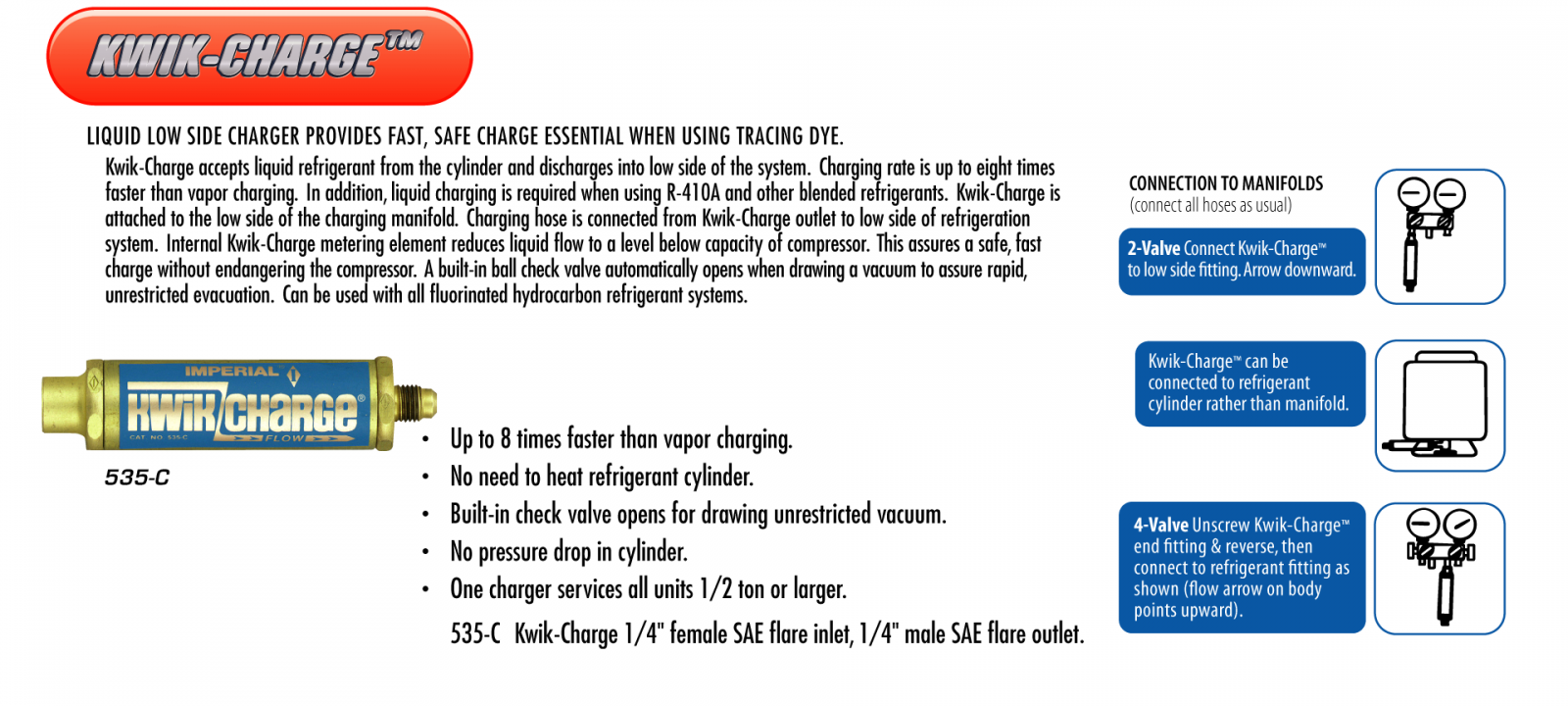

The Kwik-Charge accepts liquid refrigerant from the cylinder and discharges it into the low side of the system. This results in charging rates which are up to eight times faster than vapor charging.

Important Note: Liquid charging is required when using blended refrigerants to avoid fractionisation of the refrigerant.

The Kwik-Charge is simply attached to the low side of the charging manifold. The charging hose is connected from the Kwik-Charge outlet to the low side of refrigeration system.
An internal metering element within the Kwik-Charge reduces the liquid flow to a level below the capacity of the compressor, assuring a safe, fast charge without damaging the compressor.
A built-in ball check valve automatically opens when drawing a vacuum to assure rapid, unrestricted evacuation. The Kwik-Charge can be used with all fluorinated hydrocarbon refrigerant systems.

  • Up to 8 times faster than vapor charging.
  • No need to heat the refrigerant cylinder.
  • Built-in check valve opens for drawing an unrestricted vacuum.
  • No pressure drop in the cylinder.


SKU 535-C
Brand Imperial
Shipping Weight 0.3500kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001000000m3
Unit Of Measure ea
Assembled Length 0.100m
Assembled Height 0.050m
Assembled Width 0.100m
