Click to enlarge

Buying Options

Qty. Image Product Name Price [ex.gst]
16-C  1/4" Straight KWIK-Coupler 45° SAE Flare 1/4” female x 1/4” male 16-C 1/4" Straight KWIK-Coupler 45° SAE Flare 1/4” female x 1/4” male
CODE: 16-C
$0.00
In stock
17-C  90o KWIK-COUPLER SAE 1/4” female x 1/4” male Flare 17-C 90o KWIK-COUPLER SAE 1/4” female x 1/4” male Flare
CODE: 17-C
$0.00
In stock
18-C  KWIK-Coupler Kit with 16-C & 17-C.  Combination 1/4” (45° Flare) Straight & 90° Couplers 18-C KWIK-Coupler Kit with 16-C & 17-C. Combination 1/4” (45° Flare) Straight & 90° Couplers
CODE: 18-C
$0.00
In stock
26-C  KWIK-Coupler 5/16" for R410a & R32 26-C KWIK-Coupler 5/16" for R410a & R32
CODE: 26-C
$0.00
In stock
27-C  KWIK-Coupler 5/16" for R410a  & R32 p390o 27-C KWIK-Coupler 5/16" for R410a & R32 p390o
CODE: 27-C
$0.00
In stock
23-C  1/4" SAE Flare Straight Shut Off Coupler 23-C 1/4" SAE Flare Straight Shut Off Coupler
CODE: 23-C
$0.00
In stock
24-C 1/4" SAE Flare 90º SAE Shut-Off Coupler 24-C 1/4" SAE Flare 90º SAE Shut-Off Coupler
CODE: 24-C
$0.00
In stock

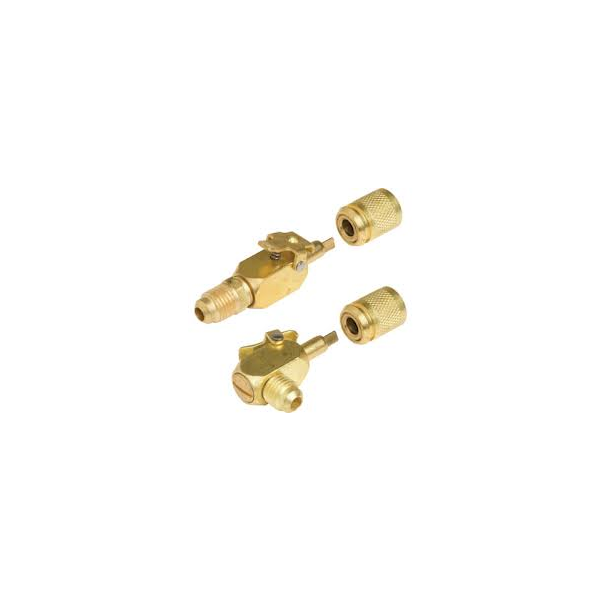

KWIK-COUPLER HOSE SHUT-OFF ADAPTERS

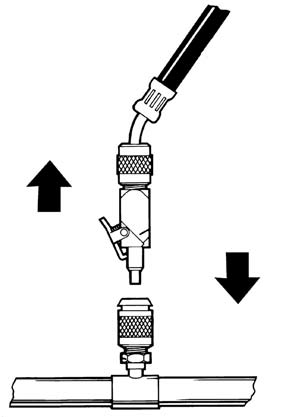

The Kwik-Coupler™ adapter set is intended for use with refrigeration and air-conditioning service hoses when connecting to core valve type access fittings. Conventional threaded connecting is converted to push-pull operation which is faster, easier and positive sealing at all times. Valve cores are depressed automatically without adjustments or loss of refrigerant. Disconnecting is also accomplished without loss of refrigerant.

An automatic shut-off valve retains refrigerant pressure in a disconnected hose. This feature permits transferring high side hose refrigerant through the service manifold into the low side, thereby eliminating waste and hazardous high pressure discharge and atmospheric damage.



FEATURES
• Automatic full depression of core valves without adjustment, regardless of core position.
• Coupler halves separately connect to access fitting and hose end,
then easy push/pull operation automatically opens or closes system without loss of refrigerant.

• Automatic shut-off of hose ends permits discharging high side hose through manifold into low side.
• Eliminates hazardous discharge of refrigerant and oil from system when disconnecting hose.
• Simplifies operation of charging critical amount of refrigerant into small systems.
• Prevents finger burn when disconnecting - especially servicing heat pumps in cold weather.
• Core depressors in hose ends no longer necessary - speeds servicing of systems with hand valves



(KWIK-COUPLERS)

SKU KWIK-COUPLERS
Brand Imperial
