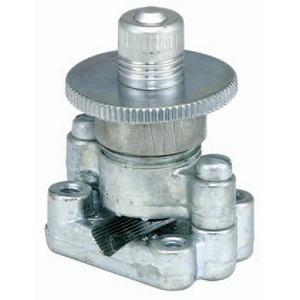

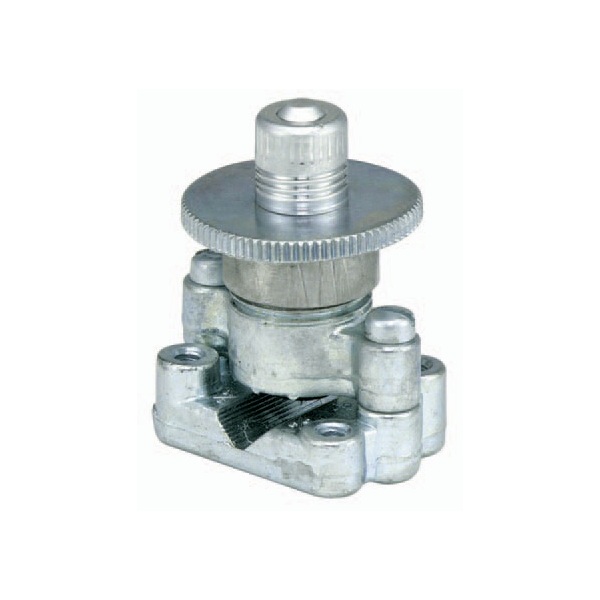

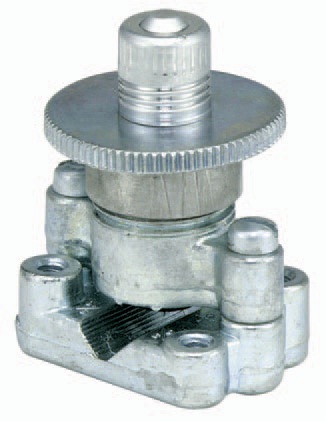

3 in 1 Line Piercing Valves


541-C














542-C  Fits  3/8”, 1/2” and 5/8” O.D. tubing.


Fast, easy, secure installation. Provides access to line at any point for charging, testing or evacuation. Two valves cover 3/16” to 5/8” O.D. tubing. Both have depressor valve and needle valve shut-off. Valve clamps on tubing line with two captive slotted-head screws: positive built-in mechanical stop for each tube size eliminates tightening guesswork.
To pierce tube, thread down the
combination l/4” flare port, stem and needle using knob furnished or a suitable wrench, back off stem and connect depressor-type hose for testing or charging. After service is completed valve is closed and left on line for future service. Dust cap provided.


Three-point sealing [(1) needle-type valve, (2) gasket and (3) check valve] prevents
leakage. Neoprene seal withstands temperatures near 300°F.

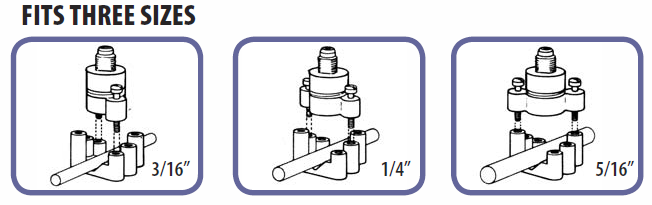

541-C  Fits 3/16”, 1/4” and 5/16” O.D. tubing.

542-C  Fits  3/8”, 1/2” and 5/8” O.D. tubing.

(LinePiecingValves)

SKU LinePiecingValves
Brand Imperial
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.050m
Shipping Length 0.070m
Shipping Cubic 0.000245m3
Unit Of Measure ea
Assembled Length 0.160m
Assembled Height 0.020m
Assembled Width 0.130m
