Industrial Retaining Ring Pliers - NON Convertible Range
For Internal & External Ring Pliers 1/8" to 3-1/2"
Click to enlarge
INDUSTRIAL RETAINING RING PLIERS
Imperial Tools - Ring Pliers for internal or external position with fixed tips for 1/8" to 3-1/2" Rings or circlips
• Available in straight, 45° and 0° offsets
• 0.023" to 0.115" tip diameters
• Cushion grip handles
|
CATALOGUE # |
DESCRIPTION | TIP DIA. | TIP ANGLE | NOM. LENGTH |
|---|---|---|---|---|
| IR-9045H | Internal Shaft | 0.090 | 45° | 9" |
| IR-470S | External Shaft | 0.047 | 0° | 5-3/4" |

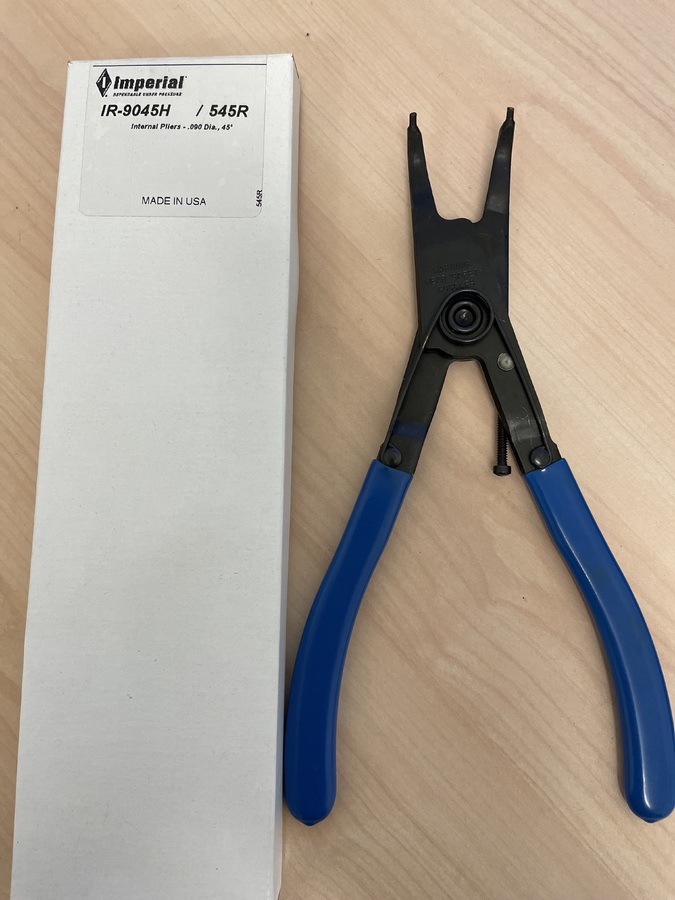

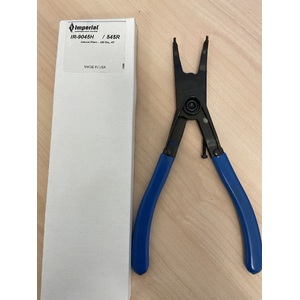

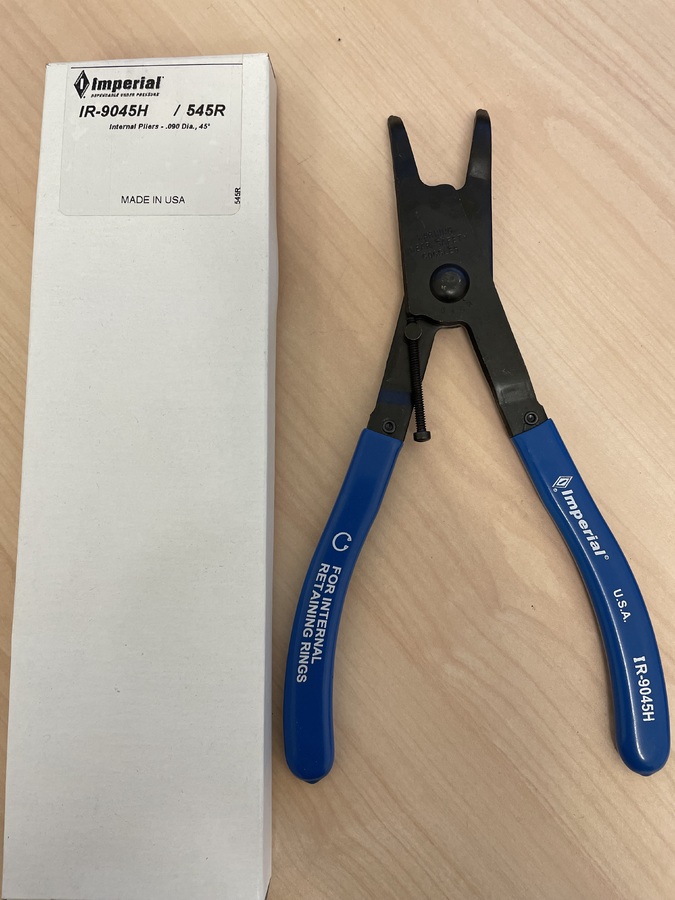

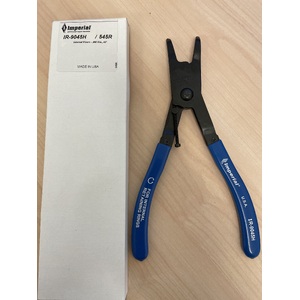

IR-9045H / Milbar 545R
Professional Industrial Internal Retaining Ring Plier - Suits 1/8" to 3-1/2" Rings
Internal Ring Pliers with 45 degree tip angle & 0.090" tip diameter.
Nominal Length 9" [225mm]
Has an adjustable stopper for setting pick-up hole distance. With spring return to same position.
IR-470S/ Milbar 202R
Professional Industrial External Retaining Ring Plier - Suits 1/8" to 3-1/2" Rings
External Ring Pliers with straight tips & 0.047" tip diameter.
Nominal Length 5-3/4" [145mm]
Has an adjustable stopper for setting pick-up hole distance. With spring return to same position.
(IndustrialRingPliers)
| SKU | IndustrialRingPliers |
| Brand | Imperial |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001500000m3 |
