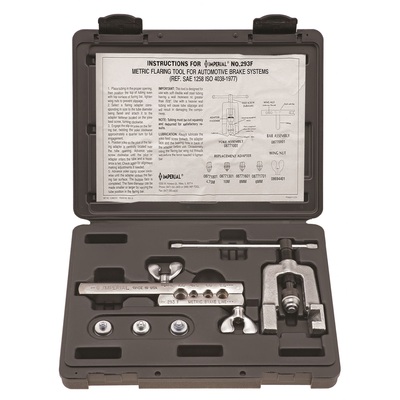

293-F Bubble Flaring Tool for Automotive Brake Lines

For Soft Steel or Bundy Tubing. Soft Copper or Aluminium.

Metric Sizes 4.75mm[ 3/16"], 6mm, 8mm & 10mm O.D. Includes Tool Case
293-F Forms international standard bubble flare in one fast operation. Flares metric hydraulic brake lines used on European, Japanese and American automobiles and light trucks.
This unique design makes flares on 4 sizes of tubing: 4.75 mm (3/16”), 6 mm, 8 mm and 10 mm O.D.
Will flare soft double-wall steel tubing with a wall thickness up to .028”.
Can also be used with soft copper and aluminum tubing. Includes tool case.

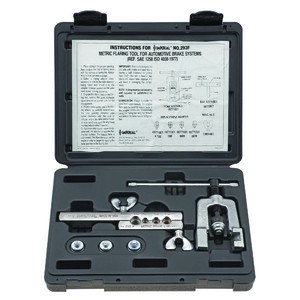

Replacement parts:

  • S8771801 4.75 mm  [3/16"] adapter.
  • S8771701 6 mm adapter.
  • S8771601 8 mm adapter.
  • S8771301 10 mm adapter.
  • S8771001 Replacement Yoke Assembly
  • S8694401 Wing nut.
​METRIC BUBBLE FLARING -Just insert tube flush with top of die for accurate flare.
With proper adapter size attached, screw down flaring cone until adapter strikes flaring bar surface. Bubble flare
is complete.

(293-F)

SKU 293-F
Brand Imperial
Shipping Weight 1.4100kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.400m
Shipping Cubic 0.008000000m3
Unit Of Measure ea
Assembled Length 0.200m
Assembled Height 0.050m
Assembled Width 0.200m
