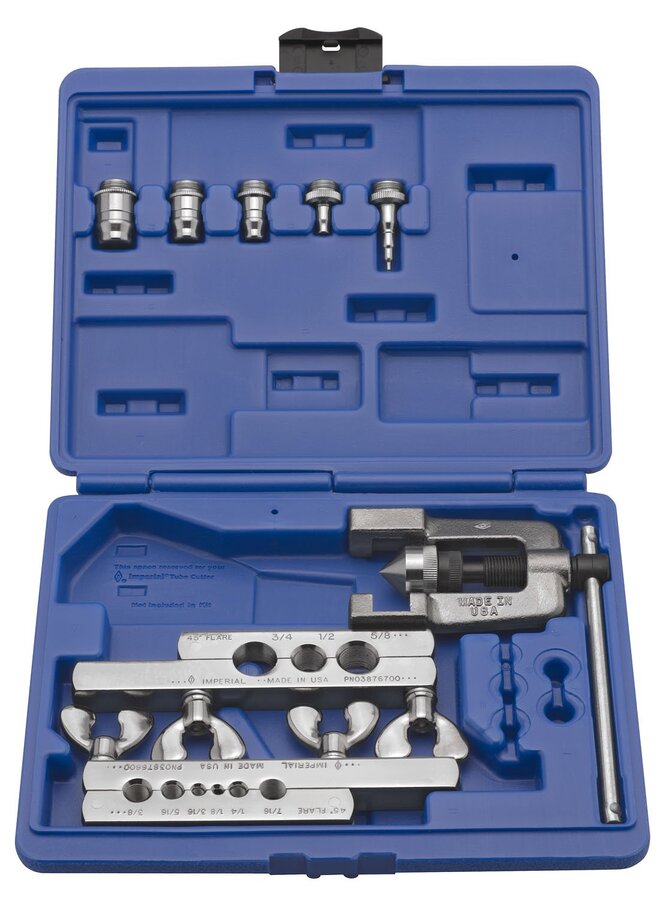

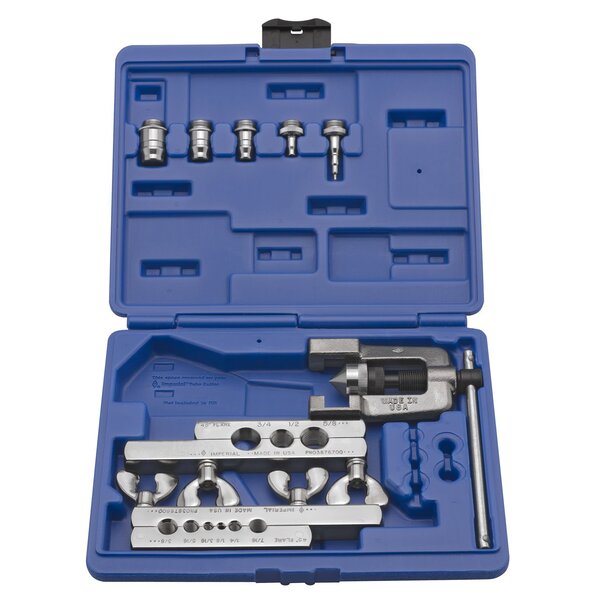

275-FS  45° Flaring & Swaging Tool Kit

Contains 275-FS Flaring bars & Yoke, Swaging adaptors & Case
Suitable for 1/8” to 3/4” (4 mm to 22 mm) O.D. tubing.

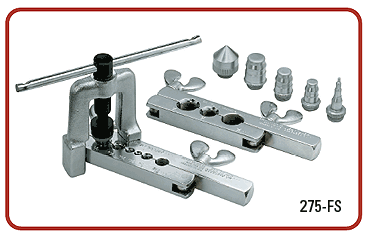

275-FS Flares and Swages up to 3/4" tube

  • Converts quickly.
  • Screw-type feed.
  • Ideal for use in close quarters.
  • Two bars included cover 9 sizes.
  • Additional Swage adaptor available for 7/8" pipe

Swivel-type swaging adapters and flaring cone are hardened steel, chrome finished for easy operation.
Self-centering, slip-on forged steel yoke. Includes tool case. Wt. 3.5 Ibs.
Flares 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8” and 3/4” O.D.

Includes 5 x Swage adapters for 7 tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4” O.D. Tube.

Replacement parts:

  • 278-FS-03X04X06 Swage Adapter 3/16”, 1/4”, 3/8”
  • 278-FS-08  Swage Adapter 1/2”
  • 278-FS-05  Swage Adapter 5/16”
  • 278-FS-14   Swage Adapter 7/8”
  • S38600       45 Degree Flaring Cone
  • S8694401  Wing Nut for Flaring Bar
  • S73938       Stud & Pin for Flaring Bar


SKU 275-FS
Brand Imperial
Shipping Weight 2.5000kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.003000000m3
Unit Of Measure ea
Assembled Length 0.200m
Assembled Height 0.050m
Assembled Width 0.300m
