U7006 - CHARG-CHECK 80 oz [2250g] Charging
Cylinder with R134a scale.

Accurately charge your refrigeration system with Charg-Check, available in a number of sizes to suit your needs. All come with 1/4" SAE Fittings.

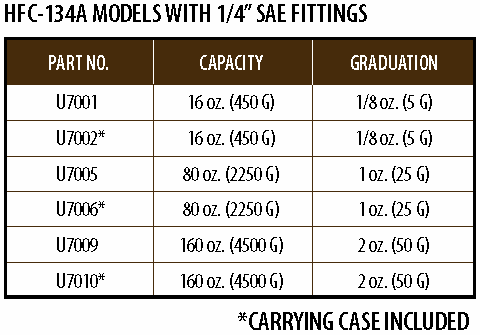

• Available in three sizes to suit any application, 1lb. (16oz.), 5Ib. (80oz.), and 10lb. (160oz.) sizes cover the field from light domestic to heavy commercial.
• Allows you to measure out precise quantities of refrigerant.
• Helps speed up the charging process by letting you charge with heat. All cylinders except the 16oz. model will hold a Model 7024 Heater Assembly (240 Vac) [ Heater sold separately ]
• Allows you to carry small quantities of refrigerant to the job, yet buy refrigerant in large quantities and keep the drum back at your shop.
• Is available in a steel carrying case to completely protect them from tough use. Cylinder need not be removed from the case as all connections and valves are accessible from front. Case forms a stand to set on the floor or bench. Case sold separately.
• Easily used in the field. They hang onto system being charged by means of a top-mounted bail.
• Can be calibrated for ambient temperature variations by means of temperature correction chart on the side of the scale. This is required only if better than 2% accuracy is needed.
• Safety relief valve for protection.
• Plastic liquid level indicators.

Optional accessories for the Charg-Check Series charging cylinders

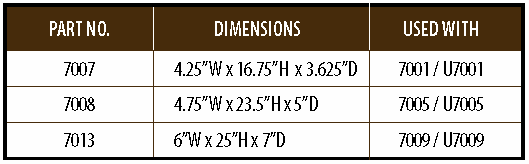

An ideal way to protect the Charg-Check cylinder from various damage including a broken sight glass. The carrying cases are constructed of 20 gauge steel and supplied with a durable powder coat finish.

CODE: 7024

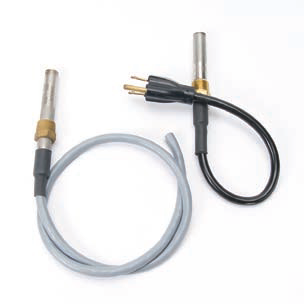

The 240 Volt heater assembly is threaded into the bottom of the cylinder to increase the speed of the charge.






SKU U7006
Brand Imperial
Shipping Weight 5.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.800m
Shipping Cubic 0.032000000m3
Unit Of Measure ea
Assembled Length 0.800m
Assembled Height 0.200m
Assembled Width 0.200m
