17WA Milbar Safety Lockwire Type 304 Stainless Steel
CODE: 17WA Dia 0.020" 1lb Dispenser
Click to enlarge
Milbar Type 304 STAINLESS STEEL SAFETY LOCKWIRE
For use with our Safety Twist Plier range
• Conforms to ASTM A580-S30400-Cond.A.
• Conforms to Military Specification NASM20995(MS20995 C).

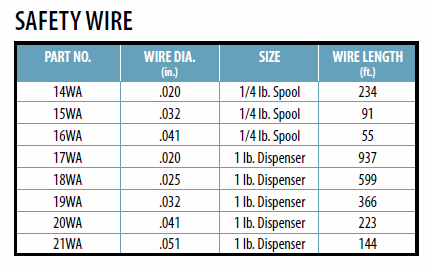

• Available in 5 different wire diameters.

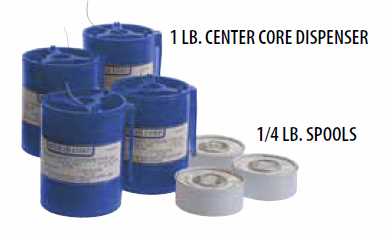

• 1 lb. center core dispensers or 1/4 lb. spools.
• Available in 5 different wire diameters.
• 1 lb. center core dispensers or 1/4 lb. spools.
SAFETY WIRE INSTALLATION HIGHLIGHTS, DOUBLE TWIST METHOD:
(AEROSPACE STANDARD AS567)
1. The safety wire is installed so that, if the fastener has any tendency to loosen, it will cause the safety wire to tighten.
2. The maximum span of safety wire (between tension points) shall be 6” (152 mm).
3. The maximum length of safety wire to be used in a single application is 24” (609 mm).
(AEROSPACE STANDARD AS567)
1. The safety wire is installed so that, if the fastener has any tendency to loosen, it will cause the safety wire to tighten.
2. The maximum span of safety wire (between tension points) shall be 6” (152 mm).
3. The maximum length of safety wire to be used in a single application is 24” (609 mm).
4. The number of twists per inch (1 twist = 1/2 complete turn) depends upon wire diameter:
- 0.020” to 0.025” dia. 8-14 twists
- 0.032” to 0.041” dia. 6-11 twists
- 0.051” to 0.060” dia. 4-9 twists
5. The wire which is looped around the outside of the fastener must always be routed UNDER the wire protruding from the hole (so that the loop will stay down and
not cause slack). This often requires the direction of the wrap and twist of strands to REVERSE from run to run, or run to pigtail.
6. Pigtail should be no more than 3/4” long and have a minimum of four (4) twists. Ends should be cut and bent toward fastener to prevent snags.
not cause slack). This often requires the direction of the wrap and twist of strands to REVERSE from run to run, or run to pigtail.
6. Pigtail should be no more than 3/4” long and have a minimum of four (4) twists. Ends should be cut and bent toward fastener to prevent snags.
(Safety-Wire)
| SKU | Safety-Wire |
| Brand | Imperial |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.080m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.002400000m3 |
| Unit Of Measure | ea |
