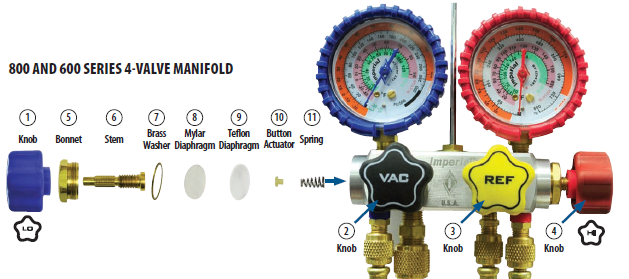

600 SERIES 4-VALVE MANIFOLD

This 4-valve model offers complete connection for your repairs & diagnostics. Use for all Refrigeration & Air Conditioing Service.

• 4-Valve Efficiency - Vacuum, low side, high side, and refrigerant lines are individually connected and controlled. No need to switch charging lines.
• 4 Times Faster Evacuation - 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds. 3/8” port has greater area than combined inlets of high and low side lines.
• Deep Vacuum Valve Design - Proven diaphragm-type, soft-seat valves require only fingertip pressure to close completely. One turn to full open/close. Superior for deep vacuum service.
• Precision Gauges & Protective Boots - Unique design with easy to read color-coded scales provides superior resistance to shock, vibration and pulsation for superior performance and extended gauge life.
• PolarShield® Hi-Performance Hoses - 800 PSI working pressure, 4,000 PSI burst pressure (not all models include hose).
• Ergonomic Handles - Durable, soft-touch non-slip surface, even with oily fingers.
• Swivel Hanger

(600-SERIES-MANIFOLDS)

SKU 600-SERIES-MANIFOLDS
Brand Imperial
