537-F 37° ROL-AIR™ Flaring Tool for Hydraulic or Stainless Steel tube & pipe
CODE: 537-F Use with 3/4" up to 1-1/4" tube sizes
Click to enlarge

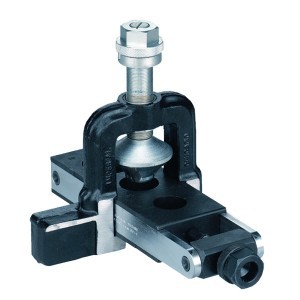

537-F 37° ROL-AIR™ FLARING TOOL
"The # 1 choice for Hydraulic Service"
Sizes 3/4”, 7/8”, 1” & 1-1/4” o.d. for Hydraulic Stainless Steel Tube & Pipe
The 537-F made by Imperial Tools forms 37° flares to government specifications in steel, stainless steel (including MIL-T-6845), titanium and other metal tubing.
The Roller action cuts effort required & maintains original wall thickness - eliminating stress concentration. Suitable for flaring soft steel, copper, aluminum and fully annealed stainless steel tube & pipe.
Three rollers in the flaring cone roll out a 37° flare above die block with a special burnishing action resulting in a polished flare face. Heat treated dies clamp tubing without marking it. An extension on the yoke is used for clamping in a vise.
The 537-F has a satin chrome and black finish and packaged in a ridgid blow-molded plastic tool case.
A trusted tool when flaring for use with JIC 37 degree hydraulic tube fittings.
| Tube O.D. [ins] | 3/4" | 7/8" | 1" | 1-1/4" |
| Tube Wall Thickness [ins] | 0.065 | 0.065 | 0.065 | 0.083 |
| Tube Wall Thickness [mm] | 1.65 | 1.65 | 1.65 | 2.1 |
Refer Specification Tab for instructions and parts listing
(537-F)
| SKU | 537-F |
| Brand | Imperial |
| Shipping Weight | 3.4000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.350m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.008750000m3 |
| Unit Of Measure | ea |
