525-F 45° Grabber™ Rol-Air™ Flaring Tool
CODE: 525-F
Click to enlarge

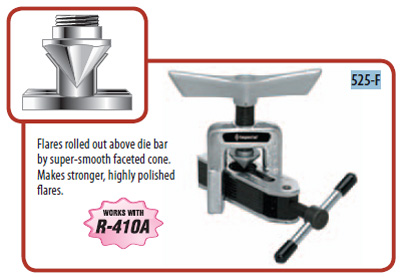

45° Grabber”™ Rol-Air™ FLARING TOOL
Universal application. Adjustable opening holds all sizes.

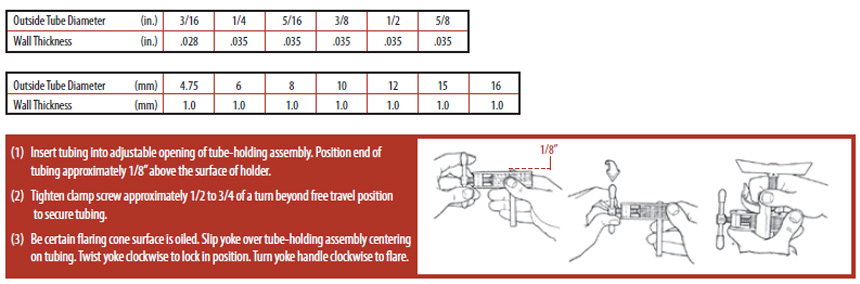

The 525-F is a unique, self-adjusting, tube holding mechanism permits flaring any size tubing within the range of 3/16” to 5/8” (4.75 mm to 16 mm) O.D.
Faceted, hardened steel, chrome finished cone rolls out and burnishes perfect 45° flare above the tube-holding mechanism reducing need for deburring. Original wall thickness is maintained at base of flare.
Slip-on self-centering yoke permits use in tight quarters. Large handle, with better leverage, and precision threads on feed screw make flaring effortless. High quality construction with satin chrome and black finish.
Light Weight @ 0.8 Kg [ 1.75 lbs ] [No Case]
Light Weight @ 0.8 Kg [ 1.75 lbs ] [No Case]
(525-F)
| SKU | 525-F |
| Brand | Imperial |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001500000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.150m |
| Assembled Height | 0.050m |
| Assembled Width | 0.100m |
