402-FA   37° ROL-AIR™ Flaring & Reaming Tool Kit


Kit Contains 400-F Flaring Yoke, Die Bar & 401-FA Reaming Yoke in Tool Case

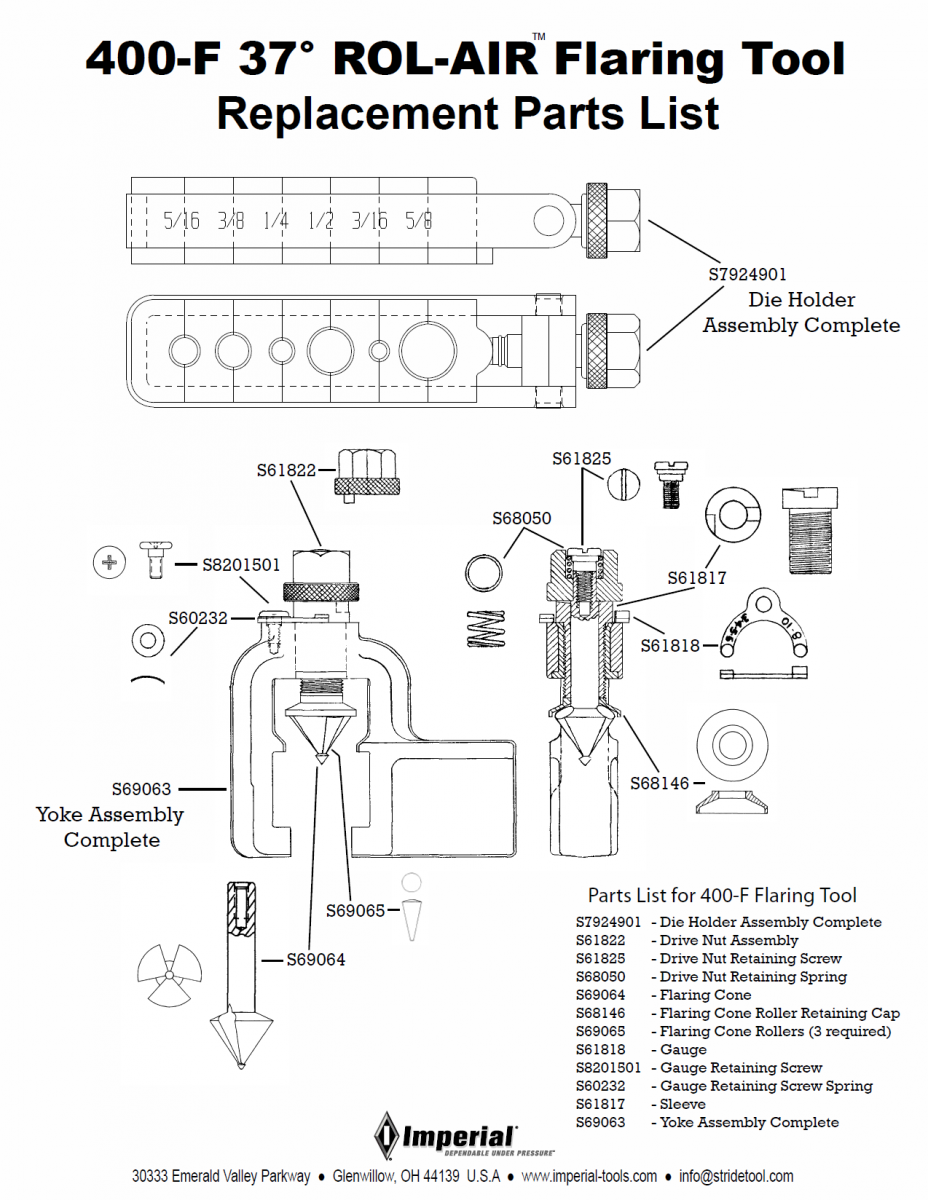

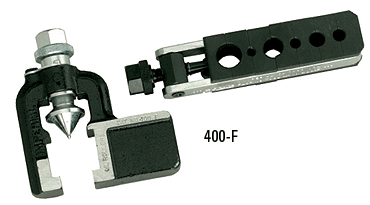

Includes the 400-F 37° ROL-AIR™ FLARING TOOL

           Sizes 3/16”, 1/4”, 5/16”, 3/8”, 1/2” and 5/8” o.d. for Hydraulic Stainless Steel Tube & Pipe

The 402-FA made by Imperial Tools forms 37° flares to government specifications in steel, stainless steel (including MIL-T-6845), titanium and other metal tubing.
The Roller action cuts effort required & maintains original wall thickness - eliminating stress concentration. Suitable for flaring soft steel, copper, aluminum and fully annealed stainless steel tube & pipe.
Three rollers in the flaring cone roll out a 37° flare above die block with a special burnishing action resulting in a polished flare face. The positive stop gauge assures correct size of flare.
An extension on the yoke is used for clamping in a vise.
The 402-FA has a satin chrome and black finish and packaged in a plastic tool case.

A trusted tool when flaring JIC 37 degree hydraulic fittings.
Tube O.D. [ins]           3/16" 1/4" 5/16" 3/8" 1/2" 5/8"
Tube Wall Thickness [ins] 0.035 0.049 0.049 .065 0.065 0.065
Tube Wall Thickness [mm] 0.88 1.24 1.24 1.65 1.65 1.65







401-FA Rol-Air™ Reaming Yoke

Reaming yoke for 1/4” to 5/8” O.D. tubing. Fits onto 400-F Flaring Bar.

Recommended for use with steel and stainless steel tubing for proper flaring.  A must tool when flaring JIC 37 degree hydraulic fittings.



(402-FA)

Download Instructions









SKU 402-FA
Brand Imperial
Shipping Weight 1.4000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.006250000m3
Unit Of Measure ea
