3/8" Yellow Imperial Evacuation & Charging Hoses

500-SERIES Polar Shield 3/8" Charging & Evacuation Hoses

Click to enlarge

Buying Options

Qty.	Image	Product Name	Price [ex.gst]
		536-FTY "Evacuation & Charging" Yellow Hose 36" [900mm] with 3/8" SAE Fittings CODE: 536-FTY	$0.00 In stock
		548-FTY "Evacuation & Charging" Yellow Hose 48" [1.2mtr] with 3/8" SAE Fittings CODE: 548-FTY	$0.00 In stock
		560-FTY "Evacuation & Charging"Yellow Hose 60" [1.5mtr] with 3/8" SAE Fittings CODE: 560-FTY	$0.00 In stock
		572-FTY "Evacuation & Charging" Yellow Hose 72" [1.8mtr] with 3/8" SAE Fittings CODE: 572-FTY	$0.00 In stock

Add Selected to Quote

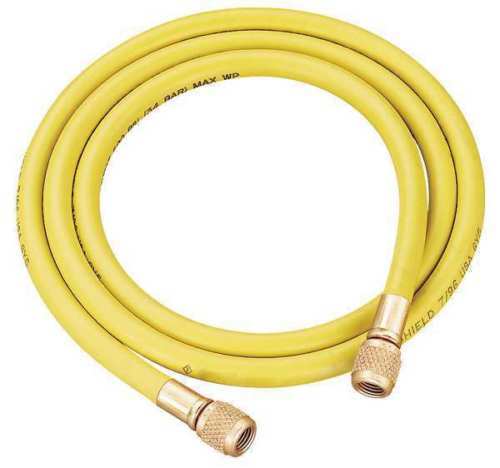

500 Series 3/8” Evacuation Hose with 3/8” SAE

Swivel Connection for faster evacuation and refrigerant charging

Our FTY range of 3/8” hoses come in various lengths for larger jobs or applications where reduced service time is desired. Use directly with your 4-Valve Manifold or Vacuum Pump. Connection 3/8” swivel ends with eight-crimp ferrules. Available in yellow only.

Product Code	Hose Length
536-FTY	36" [3'] 900mm
548-FTY	48" [4'] 1200mm
560-FTY	60" [5'] 1500mm
572-FTY	72" [6'] 1800mm

All Imperial® PolarShield® charging hoses

are UL recognized and meet UL-1963, SAE-J2196 & EPA requirements for strength, pressure and refrigerant permeation.

• Rugged, Multi-Refrigerant Nylon Barrier Construction - PolarShield hoses are compatible with all CFC, HFC & HCFC refrigerants

(R22, R32, R-410A, R-404A, R-407C, R-134a).

• High-Pressure - PolarShield hoses feature 800 PSI working pressure and 4,000 PSI burst pressure with a 5-to-1 safety factor

CODE: S7958302 Replacement 3/8” Hose Seal Gasket.

(500-SERIES-CHARGING-HOSES)

SKU	500-SERIES-CHARGING-HOSES
Brand	Imperial
