270-F Gear Bender Range for Imperial Pipe & Tube sizes.
270-F Gear Benders
Click to enlarge

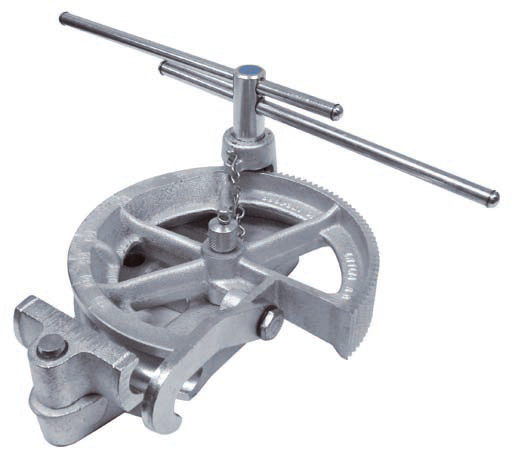

270-F GEAR TYPE TUBE BENDER RANGE
For 3/8” to 1-1/8” O.D. Pipe & Tubing
For all bending work. Spur-gear type with 10-to-1 ratio for easy bending of tempered tubing.
Floating shoe aligns tube perfectly on calibrated forming wheel. Pull-pin on wheel speeds repositioning for bends over 90°.
A Portable Bender which can be hand held, clamped in vise or bolted to bench..png)

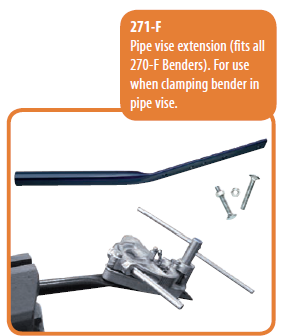

Adapts to pipe vise with handle 271-F.
* Not recommended for Type L Hard and Type M copper tubing with wall thickness over .065”.
For all bending work. Spur-gear type with 10-to-1 ratio for easy bending of tempered tubing.
Floating shoe aligns tube perfectly on calibrated forming wheel. Pull-pin on wheel speeds repositioning for bends over 90°.
A Portable Bender which can be hand held, clamped in vise or bolted to bench.
Adapts to pipe vise with handle 271-F.* Not recommended for Type L Hard and Type M copper tubing with wall thickness over .065”.
(270-F-Gear-Bender-Range)

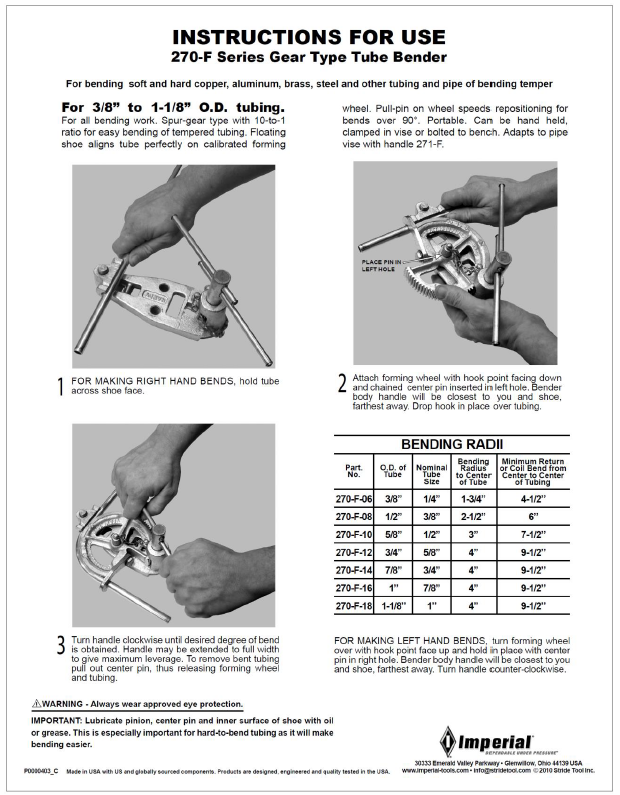

Click Instruction Image to download PDF
Click image to download PDF Version
| SKU | 270-F-Gear-Bender-Range |
| Brand | Imperial |
