2000-FS: FLAREPRO™ 4-in-1 Flaring & Swaging Kit 37° & 45° : Double Flaring - 45°
CODE: 2000-FS - Chosen by Experts
Click to enlarge
2000-FS FLAREPRO™
Four-in-One Flaring & Swaging Tool Kit
For copper, aluminum, steel, stainless steel and other metal tubing.
For copper, aluminum, steel, stainless steel and other metal tubing.
The 2000-FS Individual size jaw sets are used for positive clamping compactness and operating convenience.
Socket head screws are provided for clamping the jaws to the yoke and feeding the tube forming components. The screws are hand turned for all free travel movement when advancing or retracting.
A hex socket and 3/8” square drive ratchet are furnished for easy operation of the threaded members under load. Tube forming components (flaring cones, double flaring adapters and swaging adapters) are retained on the feed screw by a ball detent mechanism and can be snapped on and off for quick change as required.
The tool is designed to permit hand-held or vise-mounted operation. Includes tool case.
Flaring - 37° and 45°: Flares soft copper, brass, aluminum, steel and stainless steel up to 3.1mm wall thickness in nine tube sizes: 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8” and 3/4” O.D. tubing.
Double Flaring - 45° Only: Double flares soft copper, aluminum and steel (Bundy or G.M. to .035 [ 0.89mm ] wall) in seven tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8” and 3/4” O.D. tubing.
Swaging - Swages soft copper, aluminum and brass in seven tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8” and 3/4” O.D. tubing.
NOTE: Not regularly stocked - please enquire for availability
Socket head screws are provided for clamping the jaws to the yoke and feeding the tube forming components. The screws are hand turned for all free travel movement when advancing or retracting.
A hex socket and 3/8” square drive ratchet are furnished for easy operation of the threaded members under load. Tube forming components (flaring cones, double flaring adapters and swaging adapters) are retained on the feed screw by a ball detent mechanism and can be snapped on and off for quick change as required.
The tool is designed to permit hand-held or vise-mounted operation. Includes tool case.
Flaring - 37° and 45°: Flares soft copper, brass, aluminum, steel and stainless steel up to 3.1mm wall thickness in nine tube sizes: 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8” and 3/4” O.D. tubing.
Double Flaring - 45° Only: Double flares soft copper, aluminum and steel (Bundy or G.M. to .035 [ 0.89mm ] wall) in seven tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8” and 3/4” O.D. tubing.
Swaging - Swages soft copper, aluminum and brass in seven tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8” and 3/4” O.D. tubing.
NOTE: Not regularly stocked - please enquire for availability
(2000-FS)
FLAREPRO™ FOUR-IN-ONE FLARING & SWAGING KIT
For copper, aluminum, steel, stainless steel and other metal tubing.

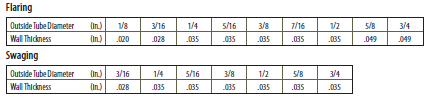

FLARING
Outside Tube Diameter (in.) 1/8 3/16 1/4 5/16 3/8 7/16 1/2 5/8 3/4
Wall Thickness (in.) .020 .028 .035 .035 .035 .035 .035 .049 .049
SWAGING
Outside Tube Diameter (in.) 3/16 1/4 5/16 3/8 1/2 5/8 3/4
Wall Thickness (in.) .028 .035 .035 .035 .035 .035 .035
| SKU | 2000-FS |
| Brand | Imperial |
| Shipping Weight | 3.5000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.100m |
| Shipping Length | 0.350m |
| Shipping Cubic | 0.008750000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.300m |
| Assembled Height | 0.055m |
| Assembled Width | 0.200m |
