537-F   Flares 37° and burnishes 3/4”, 7/8”, 1” and 1-1/4” O.D. tubing.

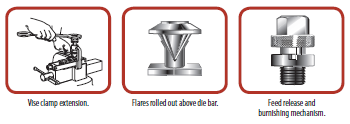

Three cylinders in flaring cone roll out 37° flare above die block. Flares soft steel, copper, aluminum and fully annealed stainless steel tube\pipe.
Roller action reduces effort required; maintains original wall thickness; eliminates stress concentration.
Feed release and burnishing action. Vise clamp extension on yoke.
Heat treated dies clamp tubing without marking it. Satin chrome and black finish.
Includes metal tool case.


Tube O.D. [ins] 3/4" 7/8" 1" 1-1/4"
Tube Wall Thickness [ins] 0.065 0.065 0.065 0.083
Refer Specification Tab for instructions and parts listing

(537-F)


SKU 537-F
Brand Imperial
Shipping Weight 4.0000kg
Shipping Width 0.200m
Shipping Height 0.075m
Shipping Length 0.350m
Shipping Cubic 0.005250m3
Unit Of Measure ea
